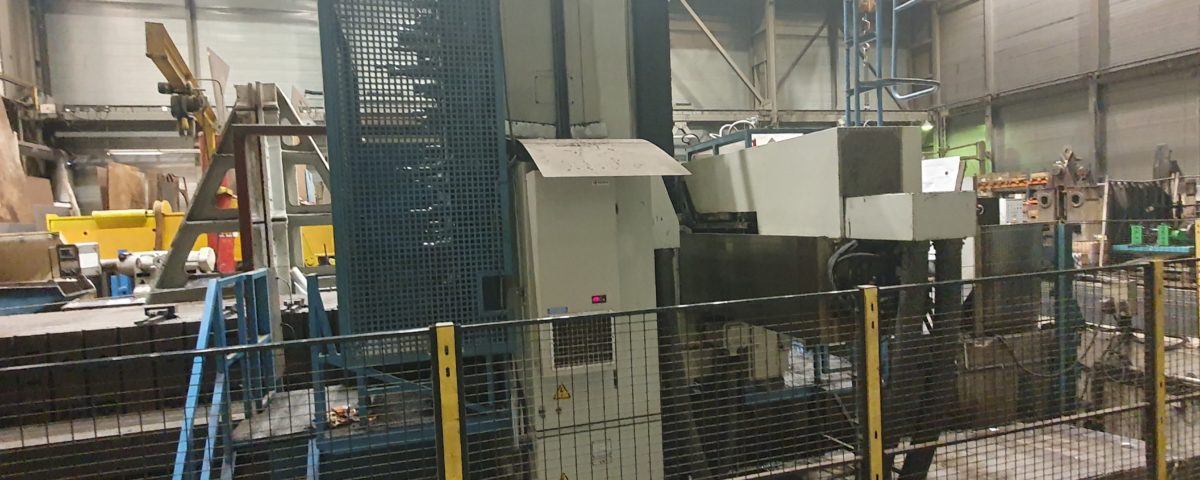

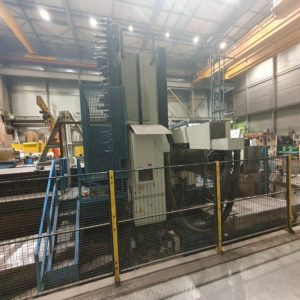

Fraiseuse à portique Zayer 30-KCU-12000

Zayer 30-KCU-12000 ALEXENDER

Zayer 30-KCU-12000 ALEXENDER

Fraiseuse à portique Zayer 30-KCU-12000



Zayer 30-KCU-12000 ALEXENDER

Année 1998
commande numérique HEIDENHAIN TNC , TNC 430

Working table surface
T-slot length 14000 mm
T-slot width 3500 mm
Distance between T-slot width 250 mm
# T-slots 14
Movement in length 12008 mm
Cross movement 1507 mm
Vertical movement 3008 mm
Min. – Max. spindle speed 35-3000 mm
Tool conus DIN69871 – B50
Tightening bolt for tool holder 150 7388-2-B50
# tools in magazine holder 100
Feed rate (normal) 6-5000 mm/min
Feed rate in length direction (rapid traverse) 10000 mm/min
Feed rate in cross direction (rapid traverse) 15000 mm/min
Feed rate in vertical direction (rapid traverse) 15000 mm/min
Power Main motor 37 Kw
Positioning accuracy +- 0,013 mm
reiteration accuracy +-0,007 mm
Nett weigth of the machine 45500 kg
